Harmsco Cartridge Filters and Housings

Harmsco are simple, economical cartridge filters and housings delivering high flow, high performance filtration with up to 170 square feet of filter area.

Harmsco-All-Poly-Applications

Harmsco-Filtration Reference-Guide

Harmsco Filter Bags

Features:

• Available micron ratings: 1, 5, 10, 25, 50, 100 and 200
• Broad chemical compatibility
• High Flow
• Low Pressure drop
• Sewn construction
• Handles on all bags
• Molded plastic snap-seal to prevent bypass
• Temperatures up to 275˚F (135˚C)
• Extended baskets and bags offer longer filtration cycles

Harmsco up-flow filters

Features:

• Rugged 316 SS construction
• Electro-polished for increased resistance to corrosion
• Extensive choice of micron ratings and media, including carbon block
• Flow rated to 800 GPM
• Pressure rated to 150 psi and hydrostatically tested
• Individual studs for safe, secure lid closure
• Easy cartridge installation, removal and service
• Optional high temperature ratinges
• Chemical resistant coating optional

7 Filter; 30 GPM, 1.5" Model: HIF-7
14 Filter; 60 GPM, 1.5" Model: HIF-14
16 Filter; 75 GPM, 2" Model: HIF-18
21 Filter; 90 GPM, 1.5" Model: HIF-21
24 Filter; 100 GPM, 2" Model: HIF-14
42 Filter; 175 GPM, 2" Model: HIF-14
75 Filter; 300 GPM, 3" Model: HIF-75
100 Filter; 400 GPM, 3" Model: HIF-100
150 Filter; 600 GPM, 4" Flanged Model: HIF-150-FL
200 Filter; 800 GPM, 4" Flanged Model: HIF-200-FL

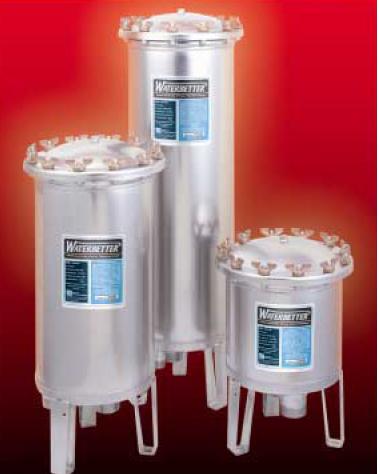

Harmsco waterbetter housings

Features

• Patented upflow design
• Low carbon SS housing construction
• "Fail safe" closure system
• CPVC standpipe (standard) - SS optional
• Three sizes for greater media surface area - 40 sq. ft., 90 sq. ft., and 170 sq. ft.
• Simple alternative to complex multiple cartridge housings
• Extensive choice of micron ratings and media, including carbon block
• Chemical resistant coating optional

50 GPM; 2" Model: WB-40-SC
100 GPM; 2" Model: WB-90-SC
200 GPM; 2" Model: WB-170-SC

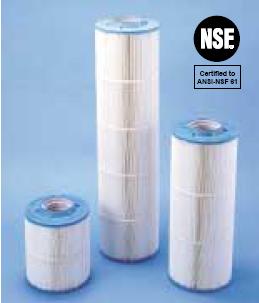

List of cartridges suitable for the different housings:

Filter model Cartridge Product Code Nominal Cartridge dimensions Micron L OD ID WB 40 SC HC/40-0,35 0,35 9-5/8" 7-3/4" 3" FPT HC/40-1 1 9-5/8" 7-3/4" 3" FPT HC/40-5 5 9-5/8" 7-3/4" 3" FPT HC/40-10 10 9-5/8" 7-3/4" 3" FPT HC/40-20 20 9-5/8" 7-3/4" 3" FPT HC/40-50 50 9-5/8" 7-3/4" 3" FPT HC/40-100 100 9-5/8" 7-3/4" 3" FPT HC/40-150 150 9-5/8" 7-3/4" 3" FPT HC/40-EZ-CLEAN N.R. 9-5/8" 7-3/4" 3" FPT WB 90 SC HC/90-0,35 0,35 19-1/2" 7-3/4" 3" FPT HC/90-1 1 19-1/2" 7-3/4" 3" FPT HC/90-5 5 19-1/2" 7-3/4" 3" FPT HC/90-10 10 19-1/2" 7-3/4" 3" FPT HC/90-20 20 19-1/2" 7-3/4" 3" FPT HC/90-50 50 19-1/2" 7-3/4" 3" FPT HC/90-100 100 19-1/2" 7-3/4" 3" FPT HC/90-150 150 19-1/2" 7-3/4" 3" FPT HC/90-EZ-CLEAN N.R. 19-1/2" 7-3/4" 3" FPT WB 170 SC HC/170-0,35 0,35 30-3/4" 7-3/4" 3" FPT HC/170-1 1 30-3/4" 7-3/4" 3" FPT HC/170-5 5 30-3/4" 7-3/4" 3" FPT HC/170-10 10 30-3/4" 7-3/4" 3" FPT HC/170-20 20 30-3/4" 7-3/4" 3" FPT HC/170-50 50 30-3/4" 7-3/4" 3" FPT HC/170-100 100 30-3/4" 7-3/4" 3" FPT HC/170-150 150 30-3/4" 7-3/4" 3" FPT HC/170-EZ-CLEAN N.R. 30-3/4" 7-3/4" 3" FPT

Harmsco Hurricane housings

Harmsco Hurricane Polyester Filter Cartridges

Harmsco Hurricane Installation & Operation Manual

Features:

• Patented upflow design
• Low carbon SS housings construction
• "Swing Bolt" closure system
• Stainless Steel standpipe (standard)
• Four sizes for greater media surface area
  - 170, 510, 850 and 1,360 sq. ft.
• Extensive choice of micron ratings and media, including carbon block
• Combination cyclone separator and cartridge filter in a single compact desing

50 GPM; 2" Model: HUR-40-HP
100 GPM; 2" Model: HUR-90-HP
200 GPM; 2" Model: HUR-170-HP

List of cartridges suitable for the different housings:
